Specialty Conveyor Belt

Rip Stop Conveyor Belt

Rip stop conveyor belt is mainly used to prevent the belt from penetrating or cut due to outside force factor during the conveying that cause risk of belt damage or broken. KING brand Rip stop conveyor belt provides a special rip stop breaker inserted in top cover, this rip stop breaker has different material and specification that meet various conveying design requirement.

Rip Stop Material

Rip Stop Material



Feature

  • Good troughing index.
  • Good flexibility without increasing pulley diameter.



Specification

RIP STOP MATERIAL THICKNESS
MM
WIDTH
MM
FABRIC STRENGTH
KGF/CM
N/MM
COVER RUBBER GRADE
Code Material Structure
NS Steel Cord Diameter: 1.5mm
Pitch: 2 ~ 10mm
(Can design according to customer's demand)
Top Cover: ≧ 6.0mm
Bottom Cover: ≧ 2mm
800 ~ 2200 300 ~ 2200
  • Abrasion Resistant
  • Impact resistant
  • General oil resistant
  • Fire resistant
  • Cold resistant
KA Kevlar Denier: 4500 ~ 18000
Density: (8 ~ 10) ± 1 end/cm
Top Cover: ≧ 4.0mm
Bottom Cover: ≧ 1.5mm
  • Abrasion Resistant
  • Impact Resistant
  • Oil Resistant
  • Heat Resistant
  • Fire Resistant
  • Cold Resistant

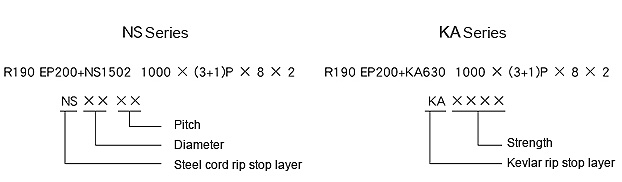

Specification Expression
